3D SOLUTION FOR JEWELLERY AND SMALL OBJECTS
JScan 3 Features
High Accuracy

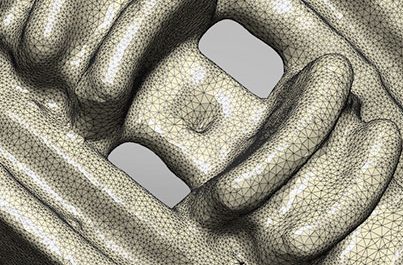

It offers maximum precision and accuracy, acquiring even the smallest detail, allowing a highly detailed reconstruction and offering powerful point cloud management tools.Up to 0.015 mm accuracy, tested in a metrological environment.
Maximum Reliability
JScan was developed entirely by EGS, including Lumen acquisition software, for greater reliability, speed and efficiency. High quality mechanical and electronic components.
Open System
JScan works with open and standard formats, allowing individual product components to be used together with third-party products that support the same formats.Datasets can be exported in open formats, which can be read using any CAD/CAM system.
Plug & Play
Supplied with Leios software and an integrated PC already installed, JScan is fully Plug&Play. Only a monitor and a mouse are required to use the scanner.
Other Features!
Automatic Calibration
Thanks to its special plate, the calibration of the optics and axis is done automatically in 5 minutes.
Customizable
Complete freedom of choice: customize your hardware and / or software product in the way that best meets your needs.
PERFORMANCE
Technical Specifications
3D Scanning Technology
Camera Resolution
Interface
Light Source
Rotary Stage
3D acquisition Volume (WxDxH)
Accuracy
Input/Output Formats
Size (WxHxD)
Weight
3D scanning of the verticulator
CPU
GPU
SSD
Memory
Input/Output
OS
Acquisition Speed
Structured Light
1.3 Megapixels
USB 2.0
LED, 100 ANSI-lumens – Blue Light
2 axis movement (rotation, tilting)
90mm x 80mm x 55mm
0.015 mm
STL, PLY, OBJ, ASC
250mm x 450mm x 450mm
16 kg
Yes
6th Generation Intel “Core” series i7 6700 3.4 Ghz
Nvidia “GeForce” GT 730 1GB DDR3
256 GB SATA
16 GB RAM DDR3. Memory Speed 1600 Mhz
1 HDMI, 1 DVI-D, 1 DisplayPort, 6 USB 3.0, Ethernet 10/100/1000
Mbps, WiFi 802.11 a\b\g\n\ac
Windows 10 Pro – 64 bit
12 fps (frame per second)
Certifications and Metrological Test
JScan 3 complies with all safety requirements and standards
EN 61010-1:2010 and EN 61326-1:2013.
