3D SOLUTION FOR JEWELLERY AND SMALL OBJECTS

JScan 4


Accuracy & Speed

By projecting a pattern of light on the model and analyzing the deformation of the light on the surface edges, the model geometry is calculated.

Maximum Reliability

Manufacturing choices of highest quality. EGS develops every component, maximizing the quality and ensuring complete control.

Automatic Calibration

Thanks to its special plate, the calibration of the optics and axis is done automatically in 5 minutes.

Plug & Play

Supplied with Leios for Makers and integrated PC, JScan does not need any initial configuration.Only a monitor and a mouse are required to use the scanner.

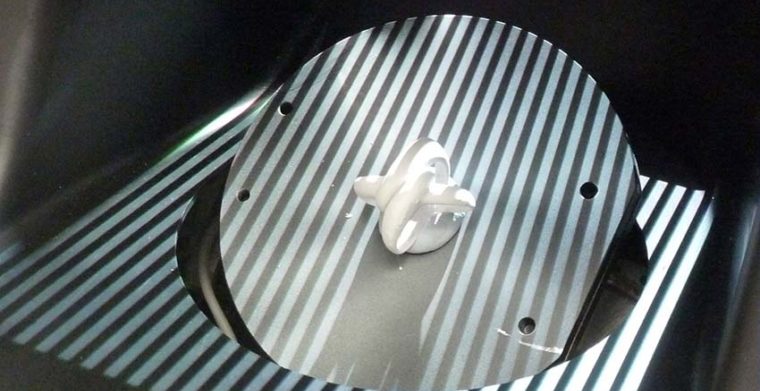

Scansione ad anello sotto luce LED dallo scanner 3D

Other Features!

Customizable

Complete freedom of choice: customize your hardware and/or software product in the way that best meets your needs.

Precise

Up to 15 microns, tested in metrological environment.

Reliable

Leios is optimized for the latest cutting edge technology the market provides.

Easy To Use

Wizard approach  dramatically shortens time to market, providing one-click functions for the most common uses.

Open System

Data can be exported to common formats to be read by any CAD / CAM system.


PERFORMANCE

Technical Specifications


3D Scanning Technology


Camera Resolution


Interface


Light Source


3D acquisition Volume (WxDxH)


Accuracy


Input/Output Formats


Size (WxHxD)


Weight


3D scanning of the verticulator


CPU


GPU


SSD


Memory


Input/Output


OS


Acquisition Speed

Structured Light


1.3 Megapixels


USB 3.0


LED, 100 ANSI-lumens – Blue Light


90mm x 80mm x 70mm


0.015 mm


STL, PLY, OBJ, ASC


250mm x 450mm x 450mm


21 kg


Yes


7th Generation Intel “Core” series i7 7700 3.6 Ghz


Nvidia “GeForce” GT 730 2GB DDR3


256 GB SATA


16 GB RAM DDR3. Memory Speed 1600 Mhz


1 HDMI, 1 DVI-D, 4 USB 3.0, Ethernet 10/100/1000 Mbps, WiFi 802.11n


Windows 10 Pro – 64 bit


25 fps (frame per second)


Certifications and Metrological Test

JScan 4 complies with all safety requirements and standards

EN 61010-1:2010 and EN 61326-1:2013.

DISCOVER THE FEATURES OF

JScan 4
